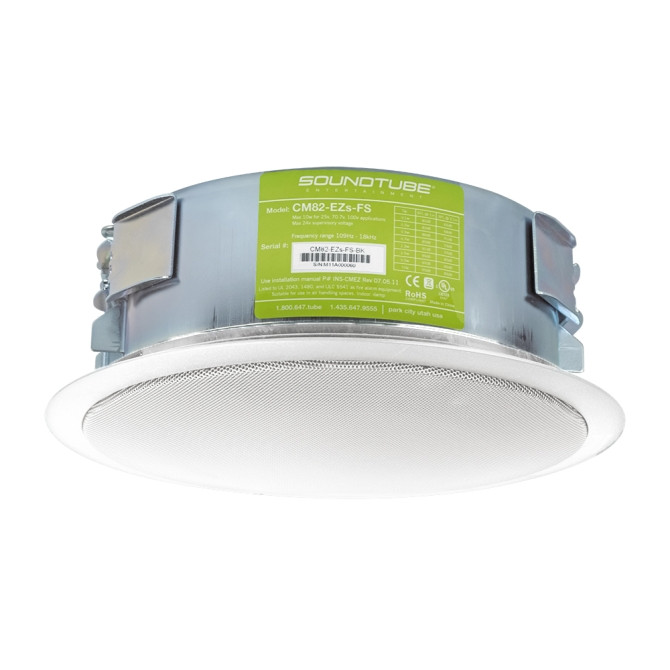

SoundTube CM82-EZS-FS In Ceiling Speaker in White New

SoundTube CM82-EZS-FS In Ceiling Speaker in White

An in-ceiling speaker specifically tailored for use in fire signaling system that delivers the same high quality sound expected of SoundTube speakers. Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5 inches. One 8 inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. Easy-access five-position tap switch for 25/70.7/100-volt settings allows for easy ordering, stocking and installation. Reduced amplification costs and maximum efficiency of 88.0 dB sensitivity, 16 ohm impedance and a sealed enclosure. Superior voice intelligibility with an average coverage angle of 105 (210 kHz, independently verified). Incorporates a painted steel grille with rust inhibitor for lasting durability. Adaptable to ceiling thicknesses ranging from 0.04 inch (0.9 mm) to 1.60 inch (40.6 mm). 10 µF capacitor provided on input circuit for use with DC supervision circuits. UL 1480 (UUMW) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved.

Included accessories: Choose between a tile bridge or a pre-construction bracket, UL-listed 0.5-inch conduit clamp, and paint shield.
